Mini-watt Solar Panels

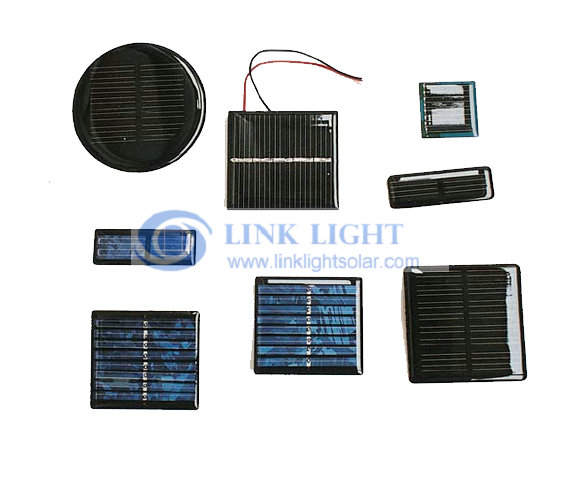

Mini-watt Solar Panels 0.1-9.9 W

YHP series of photovoltaic solar panels(0.1~9W) are processed by imported or domestic high efficiency monocrystalline (polycrystalline) silicon solar cells in series into single solar modules.
Mini-watt Solar Panels Mini-watt Solar Panels
YHP-AB-4-40 YHP-AB-2-55
Mini-watt Solar Panels Mini-watt Solar Panels
Lawn, electric toys, gifts with solar panels Charger, electric toys, gifts solar panels
Features:
1. The surface is sealed with high-performance epoxy resin or PET polyester film;
2. High conversion efficiency based on leading innovative photovoltaic technologies;
3. High stabillity with guaranteed+/-3%power output tolerance, ensuring return on investment;
4. Beautiful appearance;
5. Withstands high wind-pressure and snow load;
6. Easy to install.
Quality and Safety:
1. 25-year power output warranty with China Pacific Property Insurance Co., Ltd;
2. Rigorous quality control meeting the highest international standards;
3. ISO9001:2008(Quality Management System)certified factories manufacturing world-class products;
4. Products meet international standards and through professional testing and certification authority (SGS, UL, CE, TüV).
Recommended Applications:
1. It's widely used for decorative lamps, electric toys, electronics, gifts and other industries;
2. The size and shape can be customized;
3. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photovoltaic power plants and other fields.
Technical parameters and application:
Model Peak power
(W)
Working Voltage
(V)
Working Current
(MA)
Open-circuit Voltage
(V)
Short-circuit Current
(MA)
Cells
(pcs)
Dimention
(mm)
Application
YHP-AB-1-35 0.0525 1.5 35 1.8 38.5 3 30×21 For toy drive
YHP-AB-2-45 0.09 2 45 2.36 48.6 4 64mm equilateral triangle For one AA battery lawn light
YHP-AB-2-40 0.3 2 150 2.36 162 4 55×55 For one AA battery lawn light
YHP-AB-4-55 0.22 4 55 4.8 59.4 8 91×28 For solar radio
YHP-AB-2-80 0.16 2 80 4.72 86.4 4 60×30 For one AA battery lawn light
YHP-AB-2-120 0.24 2 120 2.36 129 4 64×55 For battery lawn light
YHP-AB-5-320 1.6 5 320 5.6 384 10 110×113 For high-power solar lamps
YHP-AB-6-100 0.6 6 100 6.72 110 12 ¢114 For battery lawn light
YHP-AB-2-240 0.6 2.5 240 2.8 259 5 ¢112 For high-power solar lamps
YHP-AB-2-50 0.1 2 50 2.36 54.5 4 ¢60 For battery lawn light
YHP-AB-2-55 0.11 2 55 2.36 58 4 ¢45 For battery lawn light
Insulating property: ≧100 MW Intensity of withstand wind: ≧120 km/h
Withstand voltage: AC2000V/DC3000V System voltage: DC1000V Impact strength: Hail blow-test (225g hail blow-test from one meter height)
Test condition: AM1.5, 1000W/㎡K, 25℃ Output power error: ±5%
Voltage temperature coefficient: -(78±10)mV/k Current temperature coefficient: -(0.06±0.01)%/k
Power temperature coefficient: -(0.5±0.05)%/k NOCT: 45±2℃
Remark: The letter “M”mean is monocrystalline solar cells and “P”mean is polycrystalline solar cells

Glass Encapsulated Solar Panels 1.0-30W

YHP series of photovoltaic solar panels(1.0~30 W) are processed by imported or domestic high efficiency monocrystalline (polycrystalline) silicon solar cells in series into single solar modules.
Glass Encapsulated Solar Panels Glass Encapsulated Solar Panels
YHP-PET-4-75 YHP-PET
Features:
1. The surface is sealed with high-performance epoxy resin or PET polyester film;
2. High conversion efficiency based on leading innovative photovoltaic technologies;
3. High stabillity with guaranteed+/-3%power output tolerance, ensuring return on investment;
4. Beautiful appearance;
5. Withstands high wind-pressure and snow load;
6. Easy to install.
Quality and Safety:
1. 25-year power output warranty with China Pacific Property Insurance Co., Ltd;
2. Rigorous quality control meeting the highest international standards;
3. ISO9001:2008(Quality Management System)certified factories manufacturing world-class products;
4. Products meet international standards and through professional testing and certification authority (SGS, UL, CE, TüV).
Quality and Safety:
1. It's widely used for decorative lamps, electric toys, electronics, gifts and other industries;
2. The size and shape can be customized;
3. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photovoltaic power plants and other fields.
Technical parameters and application:
Model Peak power
(W)
Working Voltage
(V)
Working Current
(MA)
Open-circuit Voltage
(V)
Short-circuit Current
(MA)
Cells
(pcs)
Dimention
(mm)
Application
YHP-AB-2-150 0.3 2 150 2.36 162 4 55×55 For one AA battery lawn light
YHP-PET-4-75 0.3 4 75 4.72 91 8 59×59 For two AA battery lawn light
YHP-PET-2-310 0.62 2 310 2.36 335 4 70×70 For high-power solar lamps
YHP-PET-2-180 0.36 2 180 2.36 194 4 88×88 For solar lamps
YHP-PET-5-320 1.6 5 320 5.6 384 10 110×113 For high-power solar lamps
YHP-PET-5-180 0.9 5 180 5.65 194 10 115×62 For high-power solar lamps
Insulating property: ≧100 MW Intensity of withstand wind: ≧120 km/h
Withstand voltage: AC2000V/DC3000V System voltage: DC1000V Impact strength: Hail blow-test (225g hail blow-test from one meter height)
Test condition: AM1.5, 1000W/㎡K, 25℃ Output power error: ±5%
Voltage temperature coefficient: -(78±10)mV/k Current temperature coefficient: -(0.06±0.01)%/k
Power temperature coefficient: -(0.5±0.05)%/k NOCT: 45±2℃
Remark: The letter “M”mean is monocrystalline solar cells and “P”mean is polycrystalline solar cells

If any new requests, please tell us the following parameters, we will design for you asap, try our best to satisfy you: Working Voltage(Vm), Working current(Im)or Power(W), Dimention(mm) or designate size.
