Glass Encapsulated Solar Panels

Glass Encapsulated Solar Panels 1.0-30W

YHP series of photovoltaic solar panels(1.0~30 W) are processed by imported or domestic high efficiency monocrystalline (polycrystalline) silicon solar cells in series into single solar modules. Features

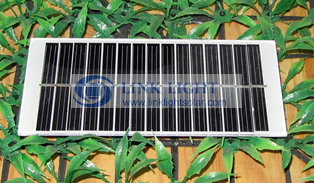

mini watt solar panel mini watt solar panel Glass Encapsulated mini watt solar panel
YHM1.5-7.5P YHM5-18P YHP15-PET
Features:
1. The surface is sealed with high-performance epoxy resin or PET polyester film;
2. High conversion efficiency based on leading innovative photovoltaic technologies;
3. High stabillity with guaranteed+/-3%power output tolerance, ensuring return on investment;
4. Beautiful appearance;
5. Withstands high wind-pressure and snow load;
6. Easy to install.
Quality and Safety:
1. 25-year power output warranty with China Pacific Property Insurance Co., Ltd;
2. Rigorous quality control meeting the highest international standards;
3. ISO9001:2008(Quality Management System)certified factories manufacturing world-class products;
4. Products meet international standards and through professional testing and certification authority (SGS, UL, CE, TüV).
Recommended Applications:
It's widely used for decorative lamps, electric toys, electronics, gifts and other industries;
The size and shape can be customized;
Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photovoltaic power plants and other fields.
Model Peak power
(W)
Working Voltage
(V)
Working Current
(MA)
Open-circuit Voltage
(V)
Short-circuit Current
(MA)
Cells
(pcs)
Dimention
(mm)
Application
YHP150-68 1.155 5.5 210 6.6 231 10 150×68 -
YHP114-150 1.4 9 155 10.62 171 18 114×150 -
YHP178-150 2.88 6 480 7.2 566 12 178×150 -
YHP292-72 2.4 15 160 16.8 172 30 292×72 -
YHP180-180 4.2 9 466 10.8 504 18 180×180 -
YHP168 2.2 6 366 6.72 395 12 ¢168 -
YHP220 4.2 18 233 20.1 252 36 ¢220 -
YHP260 4.8 18 266 20.16 288 36 ¢260 -
YHM115-155 1.3 5.5 236 6.67 255 11 115×155×15 -
YHM6-8 6.4 7.8 820 9.12 900 16 300×240×4.8 -
YHM20+ 18-25 12/18 - - - - 595×395×23 -
YHM15+ 11-18 12/18 - - - - 435×345×23 -
YHM9+ 8-9 6/9/18 - - - - 363×263×17 -
YHM8 6-8.5 6/9/18 - - - - 304×274×17 -
YHM7 5.5-7.5 6/9/18 - - - - 304×244×17 -
YHM6 5-6.5 6/9/18 - - - - 284×234×17 -
YHM5 4-5.5 6/9/18 - - - - 254×254×17 -
YHM4 4-4.5 6/9/18 - - - - 254×204×17 -
YHM3 3-3.5 6/9/18 - - - - 204×184×17 -
YHM2 2-2.5 6/9/18 - - - - 184×154×17 -
Insulating property: ≧100 MW Intensity of withstand wind: ≧120 km/h
Withstand voltage: AC2000V/DC3000V System voltage: DC1000V Impact strength: Hail blow-st (225g hail blow-test from one meter height)
Test condition: AM1.5, 1000W/㎡K, 25℃ Output power error: ±5%
Voltage temperature coefficient: -(78±10)mV/k Current temperature coefficient: -(0.06±0.01)%/k
Power temperature coefficient: -(0.5±0.05)%/k NOCT: 45±2℃
Remark: The letter “M”mean is monocrystalline solar cells and “P”mean is polycrystalline solar cells

If any new requests, please tell us the following parameters, we will design for you asap, try our best to satisfy you: Working Voltage(Vm), Working current(Im)or Power(W), Dimention(mm) or designate size.
